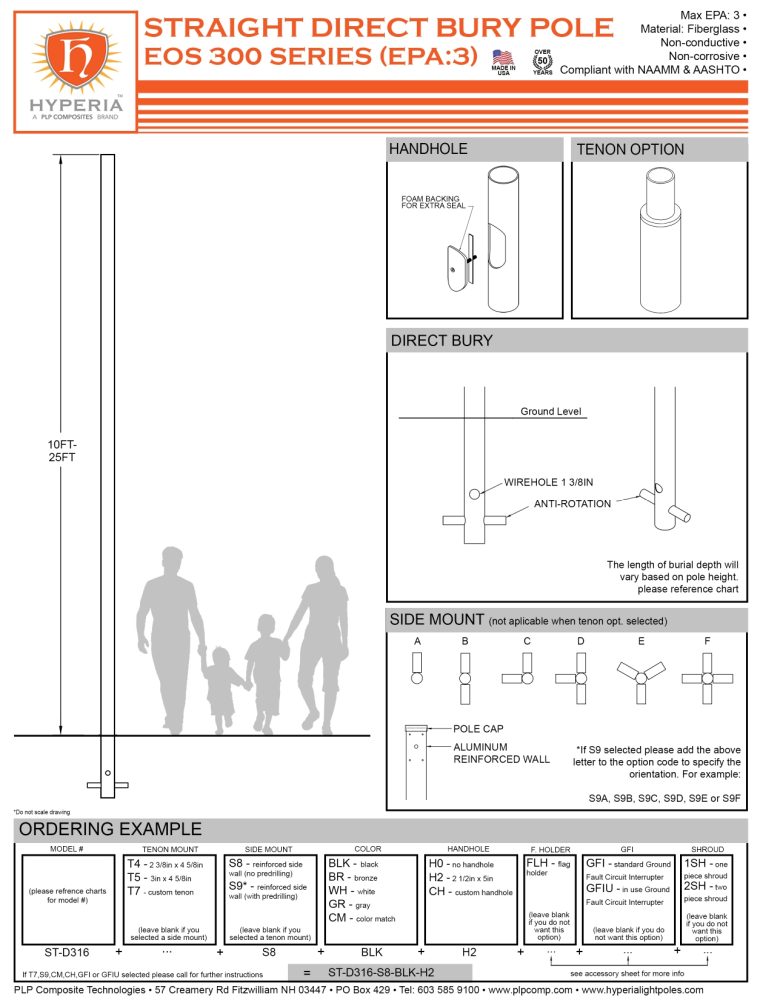

EOS Straight | Wind Speeds Up To 160 MPH

160 MPH Direct Burial

Series Data & Options

EPA Rating: 3
Max Wind Speed: 160 MPH

Mounting Options:

T4 - 2 3/8" x 4 5/8" Tenon
T5 - 3" x 4 5/8" Tenon
T7 - Custom Tenon
S8 - Reinforced Side Mount
S9 - Reinforced Side Mount (predrilled)

Color Options:

BLK - Black
BR - Bronze
WH - White
GR - Gray
CM - Color Match

Hand Hole Options:

H0 - No Handhole
H2 - 2 1/2" x 5" Handhole

GFI Options:

GFI0 - No GFI
GFI - Standard
GFIU - In-Use

Transformer Base Options:

TB17 - 17" High Transformer Base

Shroud Options:

2SH - Two Piece

Model Specifications

Model No	Mounting Height	Bury Depth	Shaft Length	Tip OD	Ground Level OD	Nominal Pole Weight
ST-CFL-D310	10 ft	4 ft	14 ft	5.6"	5.3"	29 lbs	Create Cut Sheet
ST-CFL-D312	12 ft	4 ft	16 ft	5.6"	5.3"	32 lbs	Create Cut Sheet
ST-CFL-D314	14 ft	4 ft	18 ft	5.6"	5.3"	36 lbs	Create Cut Sheet
ST-CFL-D316	16 ft	4 ft	20 ft	5.6"	5.3"	39 lbs	Create Cut Sheet
ST-CFL-D318	18 ft	4 ft	22 ft	6"	5.3"	46 lbs	Create Cut Sheet
ST-CFL-D320	20 ft	5 ft	25 ft	6"	5.3"	57 lbs	Create Cut Sheet
ST-CFL-D322	22 ft	5 ft	27 ft	6"	5.3"	62 lbs	Create Cut Sheet
ST-CFL-D324	24 ft	5 ft	29 ft	6"	5.3"	67 lbs	Create Cut Sheet
ST-CFL-D325	25 ft	6 ft	31 ft	6"	5.3"	75 lbs	Create Cut Sheet
