Athena Decorative

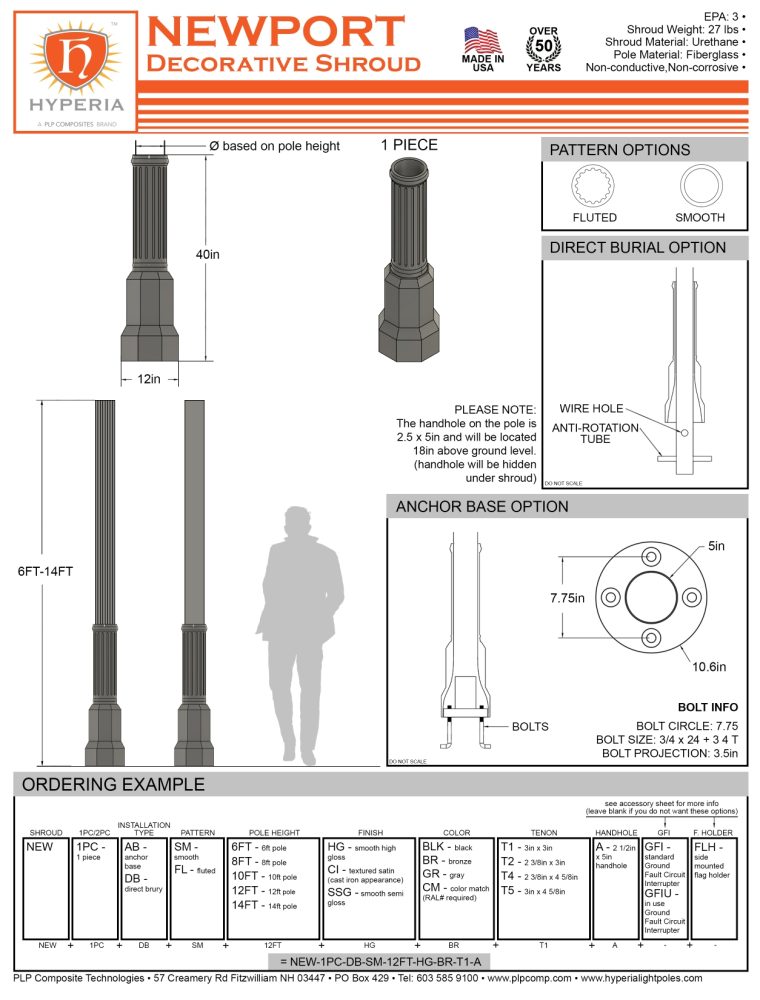

Newport Direct Burial

Series Data & Options

EPA Rating: 3
Max Wind Speed: 100 MPH

Mounting Options:

T1 - 3" x 3" Tenon
T2 - 2 3/8" x 3" Tenon
T4 - 2 3/8" x 4 5/8" Tenon
T5 - 3" x 4 5/8" Tenon

Color Options:

BLK - Black
BR - Bronze
CM - Color Match

Finish Options:

HG - Smooth High Gloss
CI - Textured Satin (Cast Iron Appearance)
SSG - Smooth Semi-Gloss

Hand Hole Options:

A - 2 1/2" x 5" Handhole

GFI Options:

GFI0 - No GFI
GFI - Standard
GFIU - In-Use

Shroud Options:

1SH - One Piece

Model Specifications

Model No	Pattern	Mounting Height	Bury Depth	Shaft Length	Tip OD	Ground Level OD	Nominal Pole Weight
new-db-sm-6ft	Smooth	6 ft	3 ft	9 ft	4.5"	5.2"	20 lbs	Create Cut Sheet
new-db-fl-6ft	Fluted	6 ft	3 ft	9 ft	4.5"	5.25"	38 lbs	Create Cut Sheet
new-db-sm-8ft	Smooth	8 ft	3 ft	11 ft	4.5"	5.2"	25 lbs	Create Cut Sheet
new-db-fl-8ft	Fluted	8 ft	3 ft	11 ft	4.5"	5.5"	46 lbs	Create Cut Sheet
new-db-sm-10ft	Smooth	10 ft	3 ft	13 ft	4.5"	5.3"	29 lbs	Create Cut Sheet
new-db-fl-10ft	Fluted	10 ft	3 ft	13 ft	4.5"	5.75"	55 lbs	Create Cut Sheet
new-db-sm-12ft	Smooth	12 ft	3 ft	15 ft	4.5"	5.5"	32 lbs	Create Cut Sheet
new-db-fl-12ft	Fluted	12 ft	3 ft	15 ft	4.5"	6"	62 lbs	Create Cut Sheet
new-db-sm-14ft	Smooth	14 ft	4 ft	18 ft	4.5"	5.6"	36 lbs	Create Cut Sheet
new-db-fl-14ft	Fluted	14 ft	4 ft	18 ft	4.5"	6.5"	76 lbs	Create Cut Sheet
